Why Quality Inspection Matters Before Your Order Leaves the Factory

The global specialty alloy supply chain is filled with risk. A heat of Inconel 625 that was labeled correctly but melted with insufficient molybdenum. A Hastelloy C-276 seamless tube with a sub-surface lamination defect invisible to the naked eye. A batch of Monel 400 bars with hardness 5 HRC above specification because the final anneal temperature was 50°C too low.

Every one of these failure modes has reached an end-user in the past 12 months — not because the defects were impossible to detect, but because the supplier did not invest in the people and equipment needed to catch them.

Shanghai Hangbo Alloy Group operates on a different principle: Every piece is tested. Every defect is caught. Every shipment is verified. This article is not a generic quality assurance brochure. It is a walk through our actual inspection floor, showing you the exact equipment we use, the standards we follow, and the data we capture — so you know exactly what stands between your order and a potential field failure.

Stage 1: Chemical Composition — Desktop OES Spectrometer (台式光谱仪)

The question every buyer must ask: Is the metal in this bar actually the grade I ordered?

A visual inspection cannot answer this. A spark test cannot answer this. Only Optical Emission Spectroscopy (OES), performed on a properly calibrated laboratory-grade instrument, can verify the exact chemical composition of an alloy in under 30 seconds.

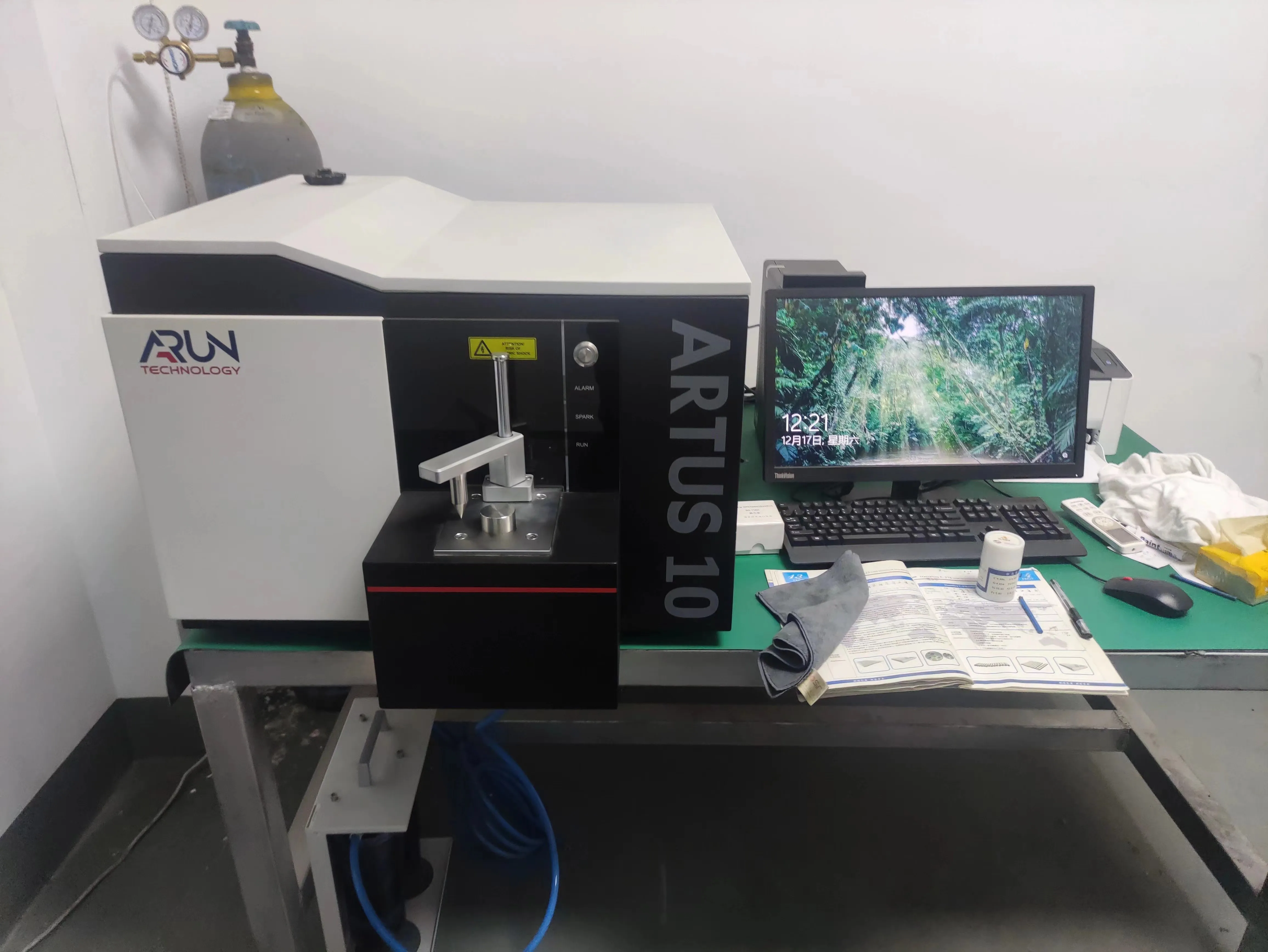

Shanghai Hangbo's primary composition verification tool is the Arun Technology ARTUS 10 desktop OES spectrometer. This is not a handheld "screener" — it is a full laboratory analytical instrument that vaporizes a small area of the sample surface using a controlled electrical arc, then measures the characteristic wavelengths of light emitted by each element to determine composition to 0.001% precision.

!Desktop OES Spectrometer - Arun ARTUS 10

What the ARTUS 10 Verifies on Every Heat:

Why this matters to your order: If a single Inconel 625 bar has molybdenum at 7.8% instead of the required 8.0-10.0%, its pitting resistance (PREN) drops below specification, and it will fail prematurely in seawater service. The OES catches this before the bar enters the production queue. Every heat, every lot, no exceptions.

Stage 2: 100% Positive Material Identification — Handheld PMI (手持光谱仪)

While the desktop OES provides laboratory-precision analysis, it tests a sample — not every finished piece. For 100% piece-by-piece verification, Hangbo deploys handheld X-ray fluorescence (XRF) analyzers for Positive Material Identification (PMI).

!Handheld PMI Spectrometer verifying Inconel 625 flange

The PMI Protocol:

• Every finished bar, tube, and plate receives a PMI check before packaging.
• The handheld unit confirms the grade (e.g., "Inconel 625") and displays the key alloying elements — Ni, Cr, Mo, Fe, Nb — with their measured values against the ASTM specification range.
• Any piece that fails PMI is immediately quarantined, physically marked, and removed from the shipment lot.
• The PMI data is archived with the heat number for full traceability.

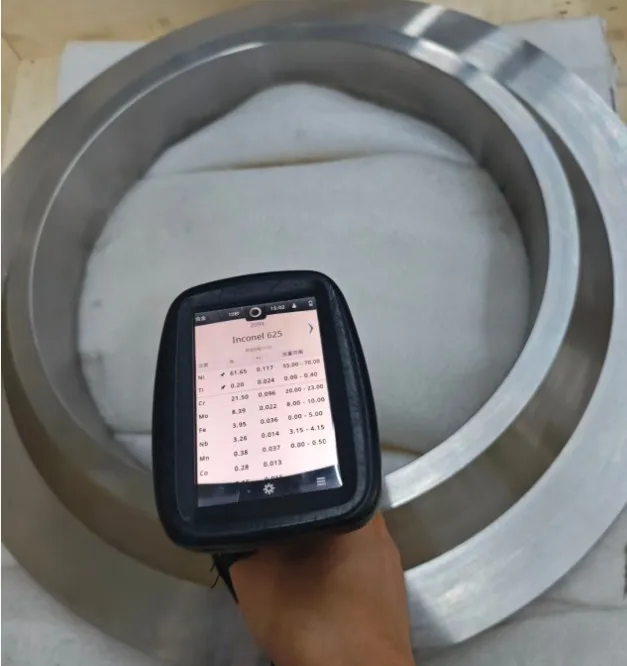

The image above shows real-time PMI verification of an Inconel 625 flange. The analyzer screen displays: Ni 61.65%, Cr 21.50%, Mo 8.39%, Nb 3.26% — all within the ASTM B446 specification. Each reading includes the error range (±), providing statistical confidence in the measurement.

Stage 3: Internal Integrity — Ultrasonic Non-Destructive Testing (超声波无损探伤)

Surface inspection and chemistry verification cannot detect what lies beneath. Sub-surface inclusions, laminations, centerline porosity, and internal cracks — invisible to the eye and undetectable by PMI — are the root cause of catastrophic in-service failures.

Hangbo addresses this with ultrasonic testing (UT) — sending high-frequency sound waves through the material and analyzing the reflected signals to map internal structure.

!Ultrasonic flaw detection on Baosteel slab

UT Parameters at Hangbo:

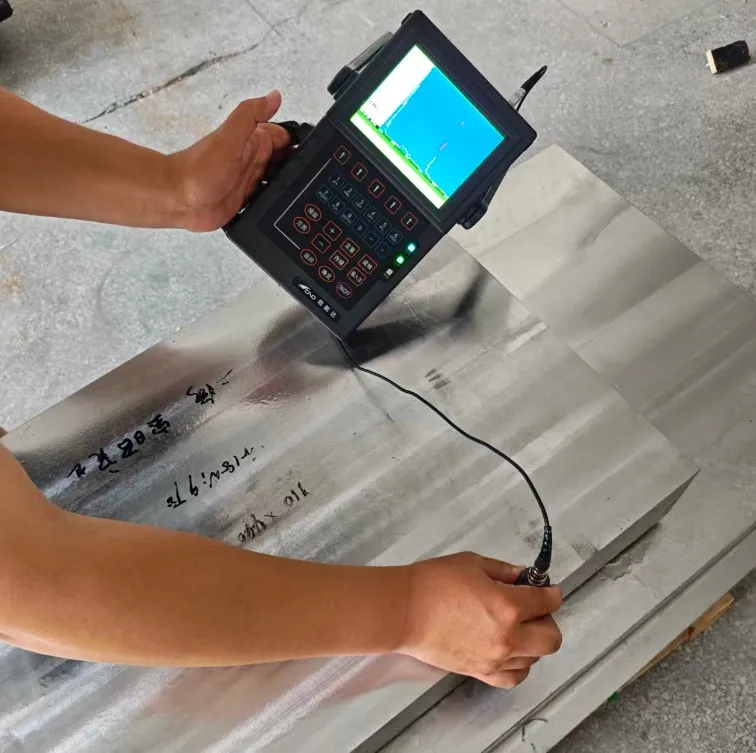

The image above shows ultrasonic testing in progress on a heavy forged slab (184.9 mm thick, 440 × 710 mm dimensions, Baosteel-sourced raw material). The A-scan waveform on the detector screen shows clean baseline with no internal reflections — confirming a solid, inclusion-free internal structure. The operator verifies the entire volume by systematically scanning the probe across the surface.

Stage 4: Dimensional Accuracy — Micrometer & Caliper (千分尺 & 游标卡尺)

Chemical composition and internal integrity are meaningless if the product does not fit. An Inconel 625 seamless tube ordered at OD 25.4 mm × wall 2.11 mm that arrives at OD 25.6 mm will not fit the tube sheet — and the entire heat exchanger assembly is delayed.

!Vernier caliper measuring batch of alloy blocks

!Micrometer measuring tube wall thickness

Hangbo Dimensional Inspection Protocol:

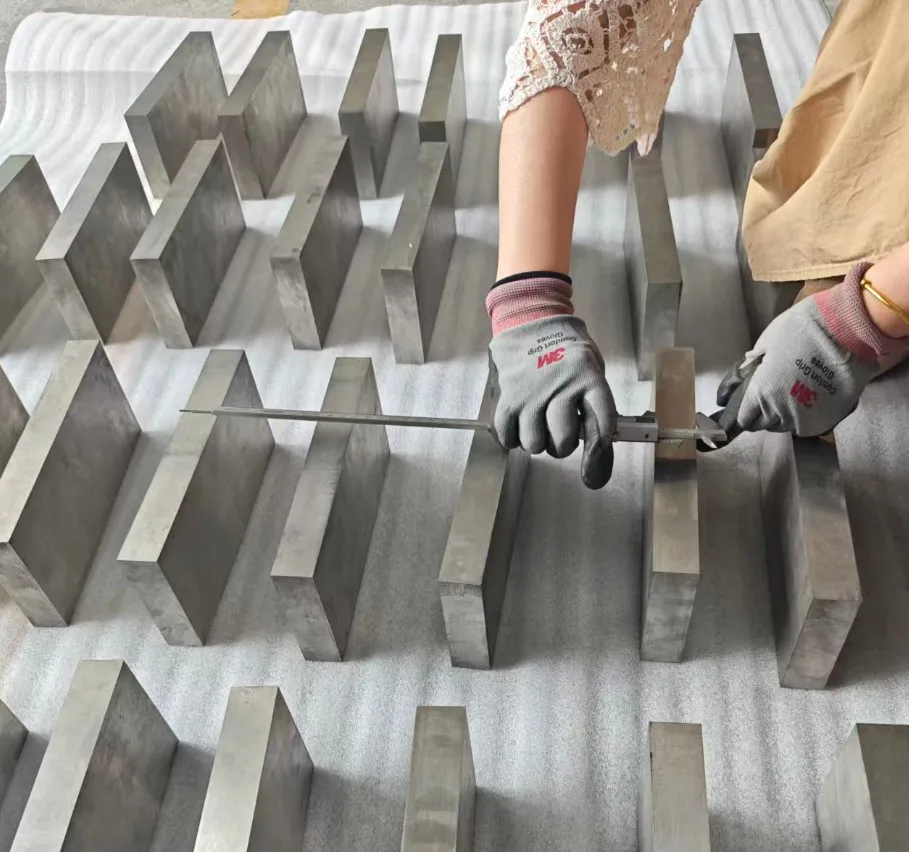

The caliper image above shows batch dimensional inspection — verifying that every piece in a production lot meets the specified dimensions before proceeding to final inspection. Each block is checked against the customer's order specifications, and any piece outside tolerance is rejected on the spot.

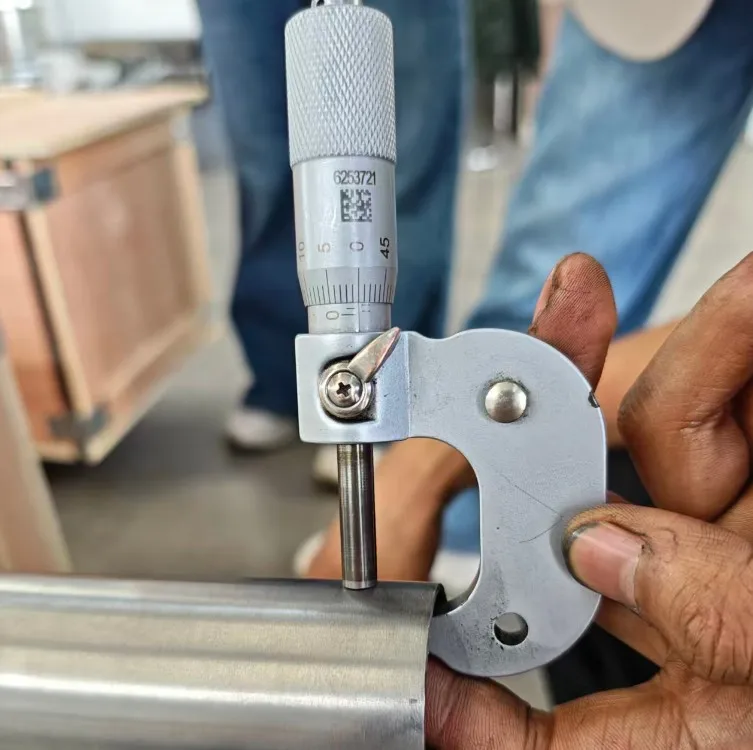

The micrometer image shows wall-thickness verification on a stainless steel tube (ASTM A249 TP316L, 25.4 × 2.11 × 6000 mm). The knurled thimble provides precise 0.01 mm resolution, and each measurement is recorded against the heat number for the final inspection report.

Stage 5: Mechanical Properties — Hardness Testing (硬度检测)

Tensile testing provides the definitive mechanical property data, but it is destructive — you cannot tensile-test the bar you are shipping to the customer. Hardness testing provides a non-destructive proxy that correlates with tensile strength and verifies that the heat treatment was performed correctly.

!Hardness tester and NDT laboratory

Hangbo Hardness Testing Protocol:

• Rockwell hardness (HRB/HRC) tested on every lot after final heat treatment.
• Benchtop hardness tester (力博 brand, shown above) provides calibrated, repeatable measurements with a large analog dial for immediate visual verification.
• Hardness acceptance criteria are defined per ASTM specification for each grade (e.g., Inconel 625 annealed: ≤ 287 HBW / ≤ 30 HRC).
• DPT penetrant testing materials (visible on the laboratory shelves: DPT-1 cleaner, DPT-3 penetrant, DPT-5 developer) are stocked for liquid penetrant inspection of surface-breaking defects on finished components.

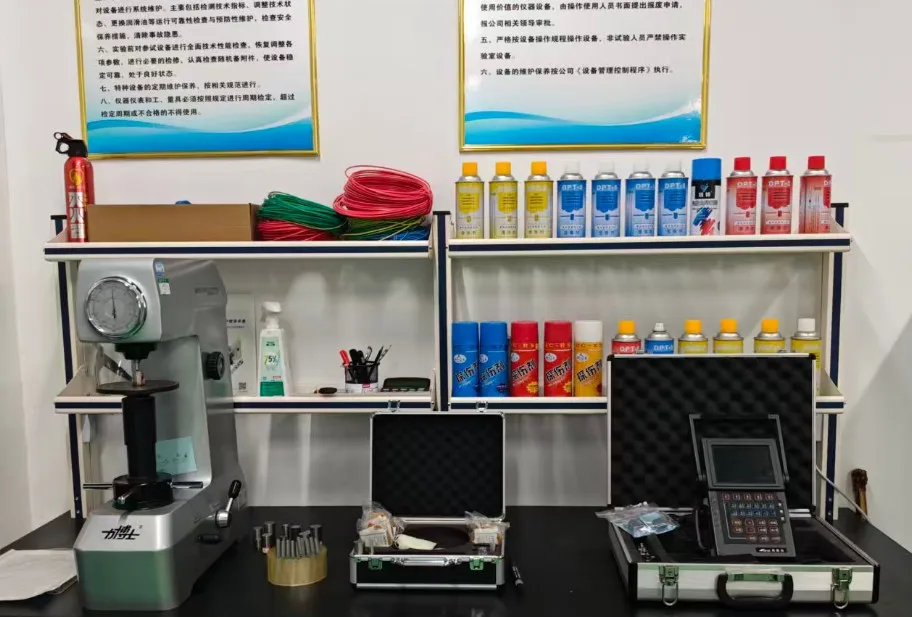

The laboratory setup shown above is Hangbo's NDT and mechanical testing station, with the benchtop hardness tester in the foreground and DPT penetrant testing consumables organized on the shelves. The framed standard operating procedures on the wall ensure every test is performed to documented, auditable protocols.

Stage 6: Third-Party Verification — SGS Independent Testing (第三方送样检测)

Internal testing is essential. Independent verification is proof. For every order where the customer specifies third-party inspection, Hangbo coordinates directly with SGS, Bureau Veritas, or TÜV Rheinland to witness testing and certify results.

!Third-party sample testing and thread gauges

SGS/Third-Party Inspection Services Available:

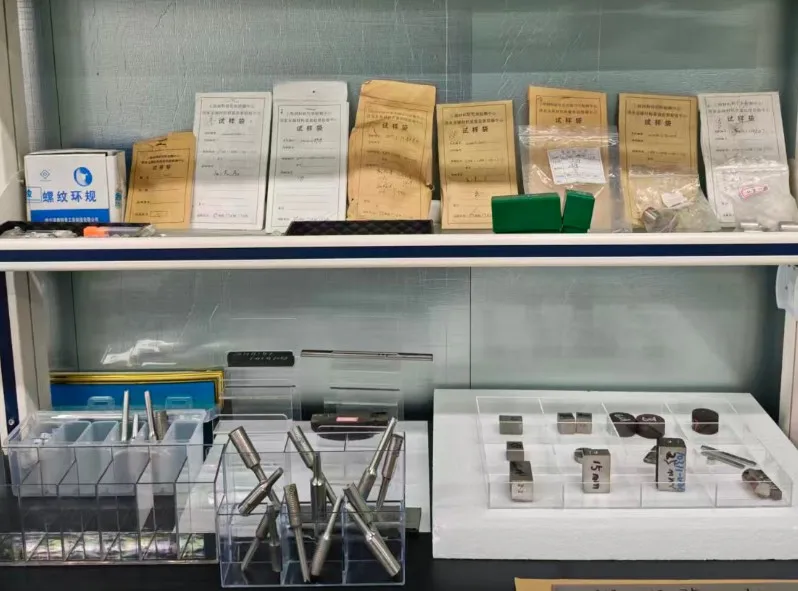

The image above shows Hangbo's sample management system — organized thread ring gauges (螺纹环规), individually labeled sample bags (试样袋), and a grid-organizer tray with numbered test specimens. Every sample is traceable to its parent heat and production lot, ensuring that third-party inspectors can verify the chain of custody from melt to finished product.

Quality Assurance Certificate

!Quality inspection certificate

Every shipment from Shanghai Hangbo Alloy Group includes a complete quality documentation package:

• EN 10204 Type 3.1 Mill Test Certificate
• Full chemical composition analysis (OES)
• Mechanical test results (tensile, hardness, impact where applicable)
• NDE results (ultrasonic, eddy current, hydrostatic)
• PMI verification record
• Dimensional conformance report
• SGS/TÜV/BV witness certificate (if specified on order)

The Hangbo Quality Commitment

We do not ship a single bar, tube, or plate that has not passed every applicable inspection stage described above. Our investment in laboratory-grade OES, 100% PMI coverage, ultrasonic NDT with A-scan documentation, precision dimensional metrology, and independent third-party verification is not a cost — it is the competitive advantage that protects our customers from the hidden cost of field failures.

Before your next order, ask any supplier these three questions:

1. "Can you show me a photo of your OES spectrometer and the last calibration certificate?"
2. "Do you PMI-check 100% of finished pieces, or only sample-test?"
3. "Will you accept SGS witness at any stage of production, at your cost?"

If the answer to any of these is "no" or a vague assurance, your shipment is carrying risk that Hangbo's customers do not accept.
